As a power engineer, constantly face the same challenge: How to cut no-load losses without compromising reliability?

For years, silicon steel was the only answer. Then when people started working with amorphous block cores — the choose changed.

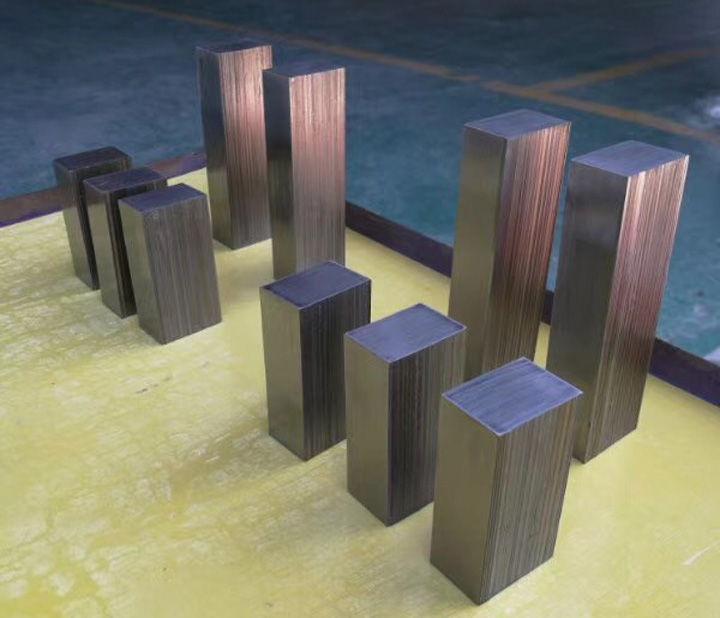

What Makes Amorphous Block Different?

Unlike traditional grain-oriented silicon steel, amorphous block has a non-crystalline atomic structure. It’s produced by ultra-rapid cooling, which eliminates long-range atomic order.

Thus characteristic lead to following performance breakthroughs:

1.70–80% lower no-load loss

For transformers running long hours under light load (distribution grids, industrial standby, renewables), this alone can justify a retrofit.

2. Exceptional permeability

Lower magnetizing current means less heat, less noise, and longer insulation life.

3. Ultra-thin thickness (~0.025 mm)

Eddy current losses drop sharply — a big win even at power frequency (50/60 Hz).

While, it Has Trade-offs:

• Lower saturation flux density (~1.55 T) → slightly larger core for same capacity
• Stress-sensitive → requires careful fixture design (no over-clamping)
• Brittle material → harder to cut and stack than steel

Thus, where Amorphous Block Wins Economically

• Annual operation > 6,000 hours
• Average load below 40%
• Electricity price > $0.10/kWh, or carbon reduction targets are in place

In these cases, the payback period is typically 2–4 years — after that, pure savings.

Amorphous block isn’t a silver bullet.

But when your job is to lower TCO and meet efficiency standards (DOE, EcoDesign, GB 20052), it’s one of the most practical, proven material upgrades available today.
