Transformador de corriente de núcleo dividido

Tipo de sujeción del perno al aire libre

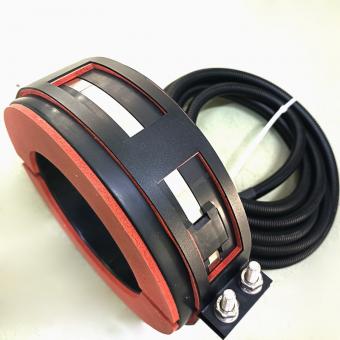

IP67 Transformador de corriente impermeable para la aplicación al aire libre

IP67 Transformador de corriente impermeable para la aplicación al aire libre

IP67, excelente rendimiento impermeable, funciona bien incluso bajo estado del agua 3dyas.

  • Detalle del producto


Parámetro típico

  • Artículo No: LKW-0.66
  • Actual Entrada: 500A
  • Actual Salida: 5A
  • Accuaria: 0.5
  • plomo wre: 1000mm
  • impermeable Nivel: IP67

Waterproof Current Transformer

Propiedades clave :

  • Medio círculo Los núcleos de hierro de silicona en la caja de plástico primero, parámetros más precisos
  • inyectar pegamento epoxi a través de 4 hoyos, sellado más alto
  • Bloque de sellado de goma entre dos mitades, excelente impermeable.
  • Tornillo de acero inoxidable con sujeción de resorte, mantenga la fuerza del bloqueo CT, impermeable en un clima diferente
  • Cables de sellado completos & Transformer Conexión Fin, Garantía IP67


Técnica Especificaciones:

dibujo

Waterproof Current Transformer

Ih / %

Accurac prueba @ Cargue el factor de potencia COSφ = 0.8, 50Hz, habitación Temperatura.

la medida

fecha

No.

carga

Articulo

5

20

100

120

observación

1

10VA

un error

-0.21%

-0.20%

-0.51

-0.71

pasar

error p

18 '

17 '

24 '

35 '


Aislamiento Prueba:

Detalles de la prueba
No.

Articulo

resultado

OK

ng

observación

1

Resistencia primaria a tierra

1000 MΩ

pasar

2

Resistencia primaria a secundaria 1

1000 MΩ

pasar

3

Resistencia primaria a secundaria 2

1000 MΩ

pasar

4

Resistencia secundaria 1 a tierra

200 MΩ

pasar

5

Resistencia secundaria 2 a tierra.

200 MΩ

pasar

6

Hit Pot Primary a Secundaria 1 & suelo

42kv 5min

pasar

7

Hit Pot Primary a Secundaria 1 & suelo

3kv 1min

pasar


Este El transformador de corriente de sujeción está diseñado para la aplicación al aire libre Especialmente.

Bajo la condición del agua 3 días, funciona bien.



dejar un mensaje

Si Usted está interesado en nuestros productos y desea saber más detalles, deje un mensaje aquí, le responderemos tan pronto como nosotros ... puedamos.

Productos relacionados
Energy Harvesting Current Transformer
Induction Power Supply Waterproof Energy Harvesting Current Transformer

CT power supply (induction power supply), is a device that uses CT installed on power lines to obtain power through electromagnetic induction principle. It consists of two parts: the power supply CT (energy transformer) and the power conversion module (converting the electrical energy obtained by CT into the required DC voltage). Our Energy Harvesting current transformer, IP68 design, hasas excellent waterproof performance and can work for a long time in outdoor water environments.

Power Conversion Module
Outdoor Induction Power Supply Power Conversion Module

CT power supply (induction power supply), is a device that uses CT installed on power lines to obtain power through electromagnetic induction principle. It consists of two parts: the power supply CT (energy transformer) and the power conversion module (converting the electrical energy obtained by CT into the required DC voltage). Our Power Conversion Module has intelligent power management based on energy harvesting, with conversion efficiency ≥90%, IP68 design perfect for outdoor application.

Energy Harvesting Current Transformer
Inductive Power Supply Current Transformer

The inductive Power Supply Current Transformers usually installed outdoors or in underground cable trenches and tunnels, with the working environment maybe raining, moisture, water accumulation. Once the split core CT with poor structure, the core cutting surface will be easy to rust, which affects the power supply ability, increasing working noise, even can't work. After long time R&D, our Coilcore's latest inductive Power Supply Current Transformers reach IP68 standard, which can achieve zero noise operation.

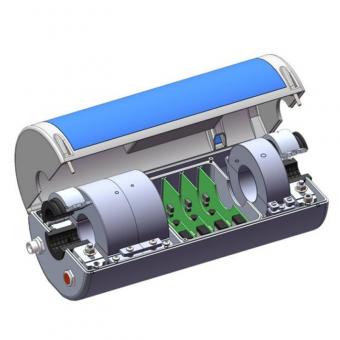

 Overhead power transmission and extraction device
